53300 Single Direction THB Bearings

53300 Single Direction THB Bearings

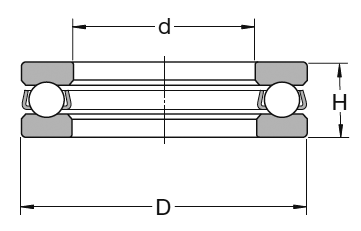

Drawing

Datasheet

Bearing No.	Dimensions				Mass
Bearing No.	d	D	H	H1
–	mm	mm	mm	mm	kg
53306	30	60	22.6	25	0.33
53307	35	68	25.6	28	0.46
53308	40	78	28.5	31	0.67
53309	45	85	30.1	33	0.83
53310	50	95	34.3	37	1.2
53311	55	105	39.3	42	1.68
53312	60	110	38.3	42	1.71
53313	65	115	39.4	43	1.89
53314	70	125	44.2	48	2.5
53315	75	135	48.1	52	3.2
53316	80	140	47.6	52	3.2
53317	85	150	53.1	58	4.35
53318	90	155	54.6	59	4.7
53320	100	170	59.2	64	5.95
53322	110	190	67.2	72	9.1
53324	120	210	74.1	80	12.5
